Current step procedure

Start up program for dataloggers. Go to program main menu and select options File and Options.

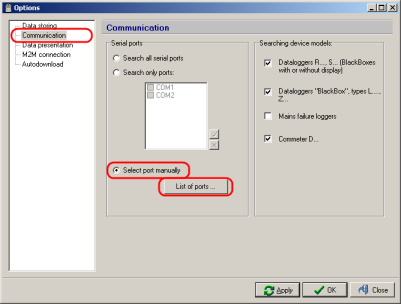

Go to page Communication. Select option Select port manually and press button List of ports.

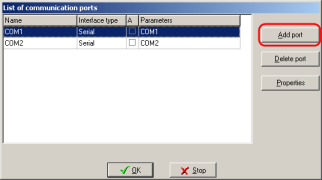

List of communication ports is displayed. Add new communication interface (port) to the list by pressing button Add.

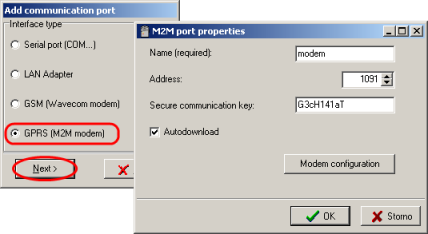

Select option GPRS (M2M modem) of communication interface (port) type and press Next button. Then edit properties of the new interface (port). As name of the interface (port) write modem, set value 1091 into the Address option and write G3cH141aT as Secure communication key. Finally check off (On state) Autodownload option and confirm new interface by button OK.

Press OK button in the list of communication ports to confirm your settings. Then press Apply or OK button in the Options window.
