Printing depends on used program modules.
Printing in the free program version
Table print
Table print is made by standard main menu option or option
from main
toolbar.
First you need select channels and time interval for printing in
the dialog Values selection for print and
export. Then set margins for printing and finally print
preview is displayed.
Graph print
Graph print is made by appropriate print function or by option
(Fast
print) from the graph
toolbar.
Fast print option prints graph what
you can currently see on the screen. Print preview is
displayed.

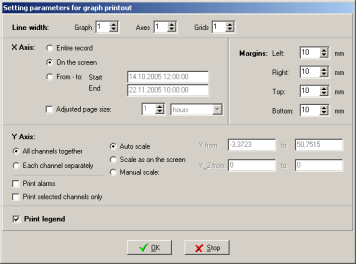

Standard print function allow you to set graph parameters before
printing in the dialog Setting parameters for
graph printout. Print preview is displayed after parameters
are set.
Graph parameters settings
Line width
Line width settings. Set appropriate line settings of the graph
objects (Graph, Axes, Grids).
Margins
Margins settings. Set appropriate margin for printing - Left,
Right, Up (Top), Down (Bottom).
X Axis
Horizontal axis (X axis) settings. It's possible specify length of
the record for print.
- Entire record
Print entire record.
- On the screen
Print only length what you can see on the screen.
- Interval (From - to)
Print graph length from the selected interval. Use options
Start and End for interval settings.
- Adjust page size
This option allow you to separate record length to the several
fixed intervals that is printed separately.
Y Axis
Vertical axis (Y axis) settings.
- Channels parameters
It's possible print all channels
together or each channel
separately. Choose your option.
- Range settings
Settings of axis range for the print. It's possible use automatic
range settings (option Auto scale) or
use range that you can see on the screen (option Scale as on the screen) or set print range manually
(option Manual scale. If you select
manual scale settings, specify range in the appropriate controls
(options Y from, to and Y_2 from, to).
- Print alarms
Enable alarms print additionally.
- Print selected channels only
Only selected channels in the graph will be printed.
Print legend
If this option is active, legend is printed.
