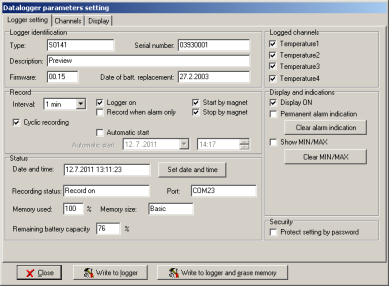

General parameters settings.
Logger identification
Record
Status
Logged channels
Display and indication
Security
Logger
identification
Type
Information about type of the connected device.
Serial number
Information about serial number of the connected device.
Description
User's description of the datalogger.
Firmware
Information about firmware version.
Date of battery replacement
Date of last battery replacement.
Record
Interval
Loggin interval define how offen are records stored to the device
memory. Use values from the list.
Logger on
Switch on/off datalogger measuring.
Record when alarm only
Data can be record only if any alarm is active (conditional
record).
Cyclic recording
When the memory is filled up, recording still continues with
replacing the oldest data by the new one. Otherwise (option is
disabled) recording is stopped until memory is erased.
Start by magnet
Datalogger can be switched on by external magnet accessory.
End by magnet
Datalogger can be switched off by external magnet accessory.
Automatic start
Recording can be switched on automatically in the defined time. Use
this option to do this. Specify date and time for the recording
start up.
Logger control by external signal
(only devices with binary input channel)
It's possible control datalogger switching on/off by external
signal. More settings of this control is located in the Channel settings part of the datalogger
configuration.
Status
Date and time
Information about date and time in the device. It's possible change
it by pressing button Set date and
time.
Recording status
Information about recording status (record on/off).
Port
Information about current used port in the computer for
communication with connected device.
Memory used
Information about memory occupation.
Memory size
Information about installed memory capacity (basic or
extended).
Approximate remaining record
time
Calculating of time during that is possible recording until the
rest of free memory is fullfilled. This time is only approximate
and takes into consideration settings of record interval, channels
that are swithed on for recording and record type (cyclic,
noncyclic). Calculating doesn't contain binary channels, because
it's not possible predict records on this channels. In case of
cyclic recording is calculated time valid only for first cycle (it
means until data memory is fullfilled). If the record is in other
cycle (new values override the oldest ones), calculated time is 0
minutes all the time.
Remaining battery capacity
Information about estimated remaining battery capacity.
Logged
channels
List of the channels. It's possible switch on/off selected
channel.
Display and
indication
Display ON (Dataloggers with display
only)
Switch on/off datalogger screen.
Notice: Switched off screen is possible activate for the 30 seconds
by magnet.
Permanent alarm indication
Alarm remains active although measured value return back into the
standard measured range. Alarm signalization can be disabled by
Clear alarm indication button.
Show MIN/MAX (only dataloggers with
the screen)
Minimum and maximum measured values are shown on the device screen.
Minimum and maximum can be reset by Clear
MIN/MAX button.
Reset MIN/MAX by magnet (only
dataloggers with the screen)
It's possible reset minimum and maximum by magnet. Use this option
to enable reset min/max by magnet.
Additional display and indication
settings
According to datalogger typ and/or input type is possible use
additional settings. All settings is valid only for datalogger with
the screen.
Show dewpoint (DP)
Show dew point on the datalogger screen.
Show difference
Show temperature difference on the datalogger screen.
Show voltage channels
Show voltage channels on the datalogger screen.
Show binary channels
Show binary channels on the datalogger screen.
Security
Protect setting by password
Writing the configuration changes and device memory erasing is
possible protect by password. Use this option to do this.
Attention! If you forget the password, it
will be necessary unblock datalogger by the auhorized service
center.
