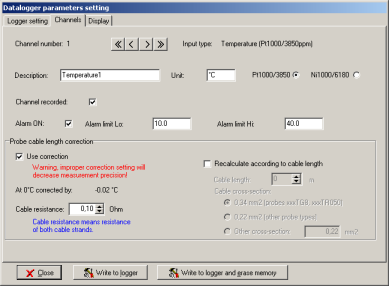

Channels parameters settings. Use arrow buttons for moving among channels ( first, previous, next, last).

Information

Channel number
Information about current channel number.

Parameters settings

Description
Channel description (name).

Input type settings
External temperature probe. This options is available only for dataloggers with external temperature probe. Use Pt1000/3850 or Ni1000/6180.

Unit
Physical unit of the measured value (max. 4 characters).

Channel recorded
Switch on/off recording of the selected channel. Measurement is still working until you switch off the device.

Alarm ON
Switch on/off alarm evaluation on the selected channel.

Alarm limit Lo
Write lower limit for alarm evaluation. Whenever measured value decreases under this limit, alarm is activated (alarm must be enabled).

Alarm limit Hi
Write upper limit for alarm evaluation. Whenever measured value exceedes over this limit, alarm is activated (alarm must be enabled).

Additional parameters settings

According to datalogger type and/or input type is possible use additional settings.

Dataloggers with counter input

Show increments
Increments are shown instead counter number.

Enable counter overflow
If the memory is full, counter starts rate from the beginning.

Resolution
Counter bit range.

Reset counter
Set up default value of the record (zero value).

Dataloggers with binary input

Level for logger start
Position settings for the logger switching on by external signal.

Dataloggers with external temperature probe

Cable length correction

Cabel length has effect on accuracy of measurement for dataloggers with external probe (line wire resistance implicate additive error). It is possible to apply correction of measurement values according to demand occuracy of measurement. Attention! Wrong correction can evaluate poor accuracy of measurement.

Enable cabel length correction by option Use correction and set correction parameters. You may use correction by line wire resistance (option Cable resistance) or by cabel length (option Recalculate by cabel length - you may find more information in the technical manual of the temperature probe).

Dataloggers with voltage and current input

Decimal point position
Number of displayed decimals on the datalogger screen and the record output.

Recalculation
Measured input signal values for voltage and current input channels (e.g. 4-20mA or 0-1V) can be recalculated to desired output value (pressure etc.). Transformation can be linear only and it is defined in two points (best in the beginning and in the end of the range).
