Parameters of the connection to the database.

Database features are designed only for data export to the database. You need have installed Database Viewer program to see data from the database.

Information about database is possible find in manual of the database system.

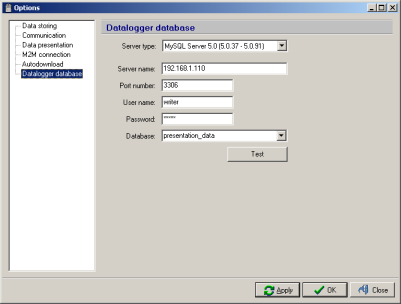

Settings

Server type
Server type selection (MySQL or Microsoft SQL server).

Server name
Datalogger database server name (address).

Port number
Port of the connection to the datalogger database server. Available only for MySQL server.

Authentication
Type of the authentication. Available only for Microsoft SQL server.

User name
User name for login to the datalogger database server.

Password
Password of the user account for login to the datalogger database server.

Database
Target database for data storing.
