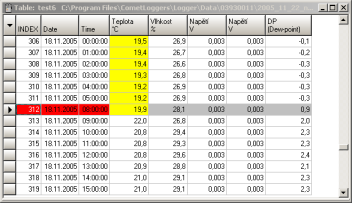

Organized values of the record in the table structure.

In the table are measurement interruptions, that can be identified by red color in the columns Index, Date and Time.

Alarms can be identified by red or yellow color in the corresponding channel column. Yellow color is used for lower alarm and red color for upper alarm. Use option Color alarm distinction from table context menu to show alarms in the table. Alarms in the table are available only for licenced program versions.

Alarms settings (Datalogger)
Alarms settings (ATP serie)
Alarms settings (ATD series)

Context menu

Press right mouse button over the table to display table context menu.

Standard context menu

Record parameters
Information about record. There are displayed following information in the window:
 • File name
 • Record description
 • Serial number
 • Memory size
 • Channels parameters

List of measurement interruptions
Measurement interruptions are collected into the list of measurement interruptions. This option is designed to view list of measurement interruptions.

Export to DBF
Records can be exported to the database table in DBF format (*.dbf files). Use this option to export selected channel to DBF database file. You may select channels for export in the Values selection for print and export window that is displayed after you select this export option. Finally it's possible choose file path and name.

Export to TXT
Records can be exported to the table in TXT format (*.txt files). Use this option to export selected channel to TXT file. You may select channels for export in the Values selection for print and export window that is displayed after you select this export option. Finally it's possible choose file path and name.

Statistic data
Statistic for each of recorded channel. There is calculated following statistic data in the table:
 • Minimum
 • Maximum
 • Average
 • Standard deviation
 • Count of samples
 • MKT (Mean kinetic temperature)

Statistic data are calculated from whole record but can be recalculated according to selected interval (use Interval option and Recalculate button).

Color alarm distinction
This option allow you enable or disable alarm indication in the table. Appropriate cell in the table is colored if alarm was active for the value. For lower alarm is used yellow color and for upper alarm is used red color.

Context menu of the free program version

Record parameters
Information about record. There are displayed following information in the window:
 • File name
 • Record description
 • Serial number
 • Memory size
 • Channels parameters

List of measurement interruptions
Measurement interruptions are collected into the list of measurement interruptions. This option is designed to view list of measurement interruptions.

Export to DBF
Records can be exported to the database table in DBF format (*.dbf files). Use this option to export table (all channels) to DBF database file. It's possible choose file path and name.

Export to TXT
Records can be exported to the table in TXT format (*.txt files). Use this option to export table (all channels) to TXT file. It's possible choose file path and name.
