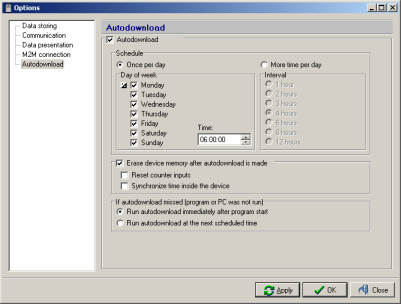

Autodownload

Autodownload function. Program automatically starts autodownload function according to schedule to download records from the device to the computer.

Schedule

Once per day
Autodownload function is possible run once per day in the within the time. Use days of the week for the more precision specification of this part of autodownload function.

More time per day
Autodownload function is possible run more then once per day. It's possible use only predefined intervals.


Erase device memory after autodownload is made

There is possibility erase data in the device memory after autodownload is successfully finished.

Reset counter inputs
In adddition to data erase is possible reset counter inputs. Use this option to do this.

Synchronize time inside the device
In addition to data erase is possible synchronize device time with computer time. Use this option to do this.


If autodownload missed

It may happen autodownload is missed (e.g. lost connection to the time). If autodownload is missed, this option set behaviour of the program.

Run autodownload immediately after program start
Whenever program starts and autodownload function is enabled and autodownload is missed, program starts autodownload function immediately.

Run autodownload at the next scheduled time
Whenever program starts and autodownload function is enabled and autodownload is missed, program ignores missed autodownload.


Exports

Export to database
After records are transfered to the computer and saved to the file, they are exported to the related database.
This option is available only for database version of the program.
