Current step procedure

Press Expert button in the main window of GPRS modem configurator switching to expert mode. Select option Modem settings (press this button) and wait until configuration is read. Configuration is opened on the page GPRS connection.

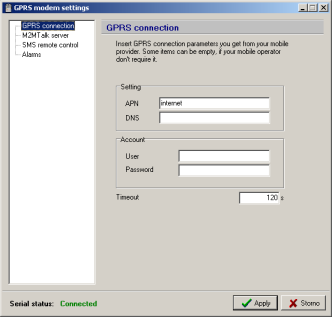

GPRS connection

Provider of the GPRS service requires set only APN parameter for GPRS connection. Insert value internet to the option APN. Left option Timeout without changes and the rest of parameters empty.

Select page M2MTalk server from the list on the left window side. Page M2MTalk is opened.

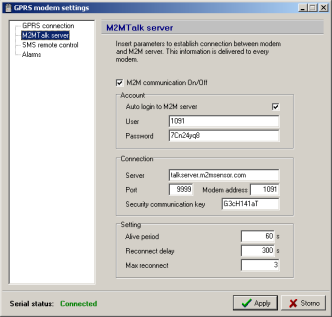

M2MTalk

Switch on options M2M communication On/Off and Auto login to M2M server. Insert value 1091 to the option User and 7Cn24yq8 to Password. Insert server address talkserver.m2msensor.com to Server and set Port to value 9999. Insert value 1091 to Modem address and write G3cH141aT as Security communication key. Left the rest of settings without changes.

Select page SMS remote control from the list on the left window side. Page SMS remote control is opened.

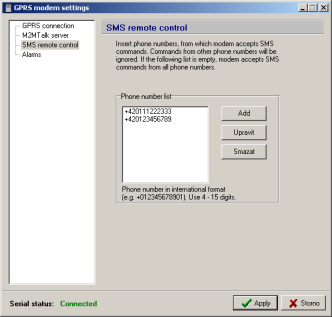

SMS remote control

Insert phone number +420111222333 to the list by button Add. Then insert to the list phone number +420123456789 by the same way.

Select page Alarms from the list on the left window side. Page Alarms is opened.

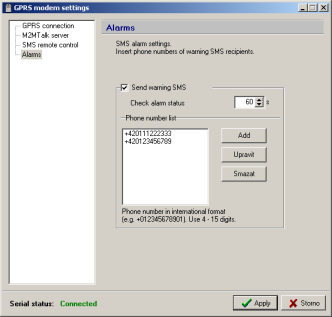

Alarms

Switch on option Send warning SMS and set value 60s (1 min) in the option Check alarm status. Then add to the list phone number +420111222333 and +420123456789, both by button Add.

Finally confirm all settings by Apply button.
