Current step procedure

Press Next button in the main window of GPRS modem configurator. Wait until configuration is read. Configuration is opened on the first page - GPRS connection.

GPRS connection

Provider of the GPRS service requires set only APN parameter for GPRS connection. Insert value internet to the option APN. Left the rest of parameters empty.

Press Next button to continue. Page M2MTalk is opened.

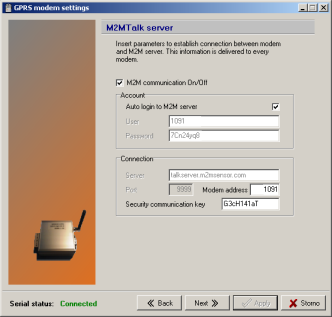

M2MTalk

M2M talk parameters are set from the factory. Only check if they are valid according your received card with M2M talk information. Option M2M communication On/Off must be check off (On state), Auto login to M2M server must be check off (On state), User must be 1091 and Password 7Cn24yq8. Afterwards check value talkserver.m2msensor.com in the option Server and value 9999 in the option Port. Modem address value must be the same as User on this page (1091). Security communication key set to value G3cH141aT (Example introduction).

Press Next button to continue. Page SMS control is opened.

SMS control

Insert phone number +420111222333 to the list by button Add. Then insert to the list phone number +420123456789 by the same way.

Press Next button to continue. Page Alarms is opened.

Alarms

Switch on option Send warning SMS and set value 60s (1 min) in the option Check alarm status. Then add to the list phone number +420111222333 and +420123456789, both by button Add.

Finally confirm all settings by Apply button.
