M2M modem      Program for dataloggers
  2. Modem to M2M server connection configuration
    1. Configuration by wizard
    2. Expert configuration
  3. Program to M2M server connection configuration
  4. Program communication interface configuration
  5. Autodownload settings

Current step procedure

Go to program main menu and select options File and Options.

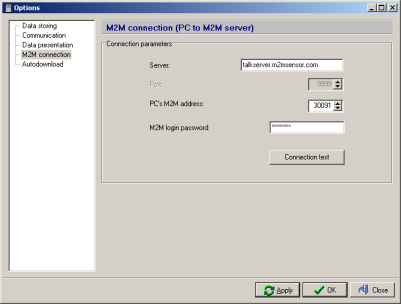

Go to page M2M connection. Set Server to talkserver.m2msensor.com. Whenever is server set to this value, Port option is automatically set to 9999 and can't be changed. Set PC's M2M address to 30091 and write Tp68es0i to option M2M login password. Finally it's possible check connection by button Connection test.

Press OK button to confirm your settings.
