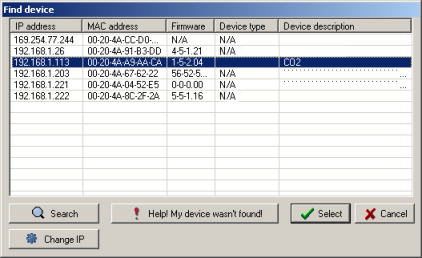

Find device


Change IP

It's possible to change IP address of your device. To do this select device from the list and press Change IP button. It will be shown window for IP address change. Set new IP address and press button OK. If you want change IP address in the ARP table only, set IP address, check off Set IP address to ARP table only option and press button OK. Wait until info message is displayed.


Help! My device wasn't found!

If you can't see your device in the list and you're right your device is connected in the network, you may try to solve this problem by setting new IP address to your device. To do this press Help! My device wasn't found! button. It will be shown window for IP address change without initialized values. Write MAC address of your device to the corresponding settings box and write (assign) IP address for it. Then press button OK. Wait until info message is displayed.
